Description

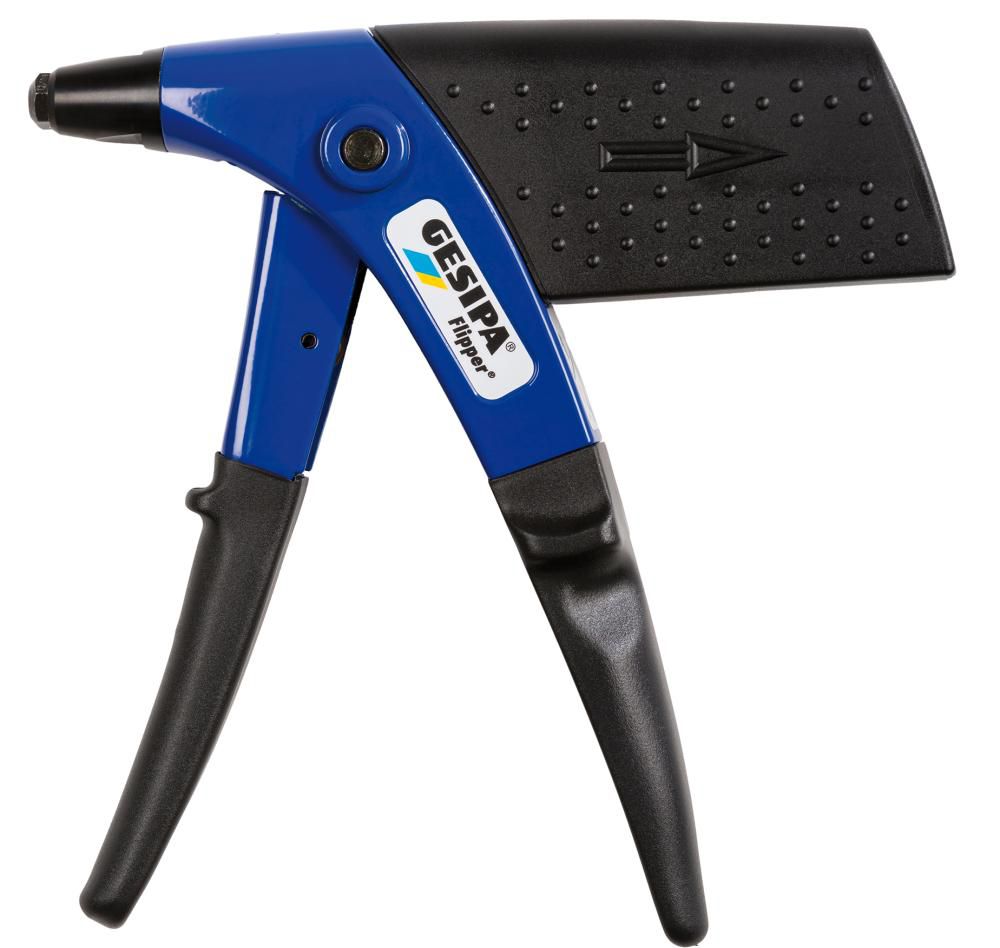

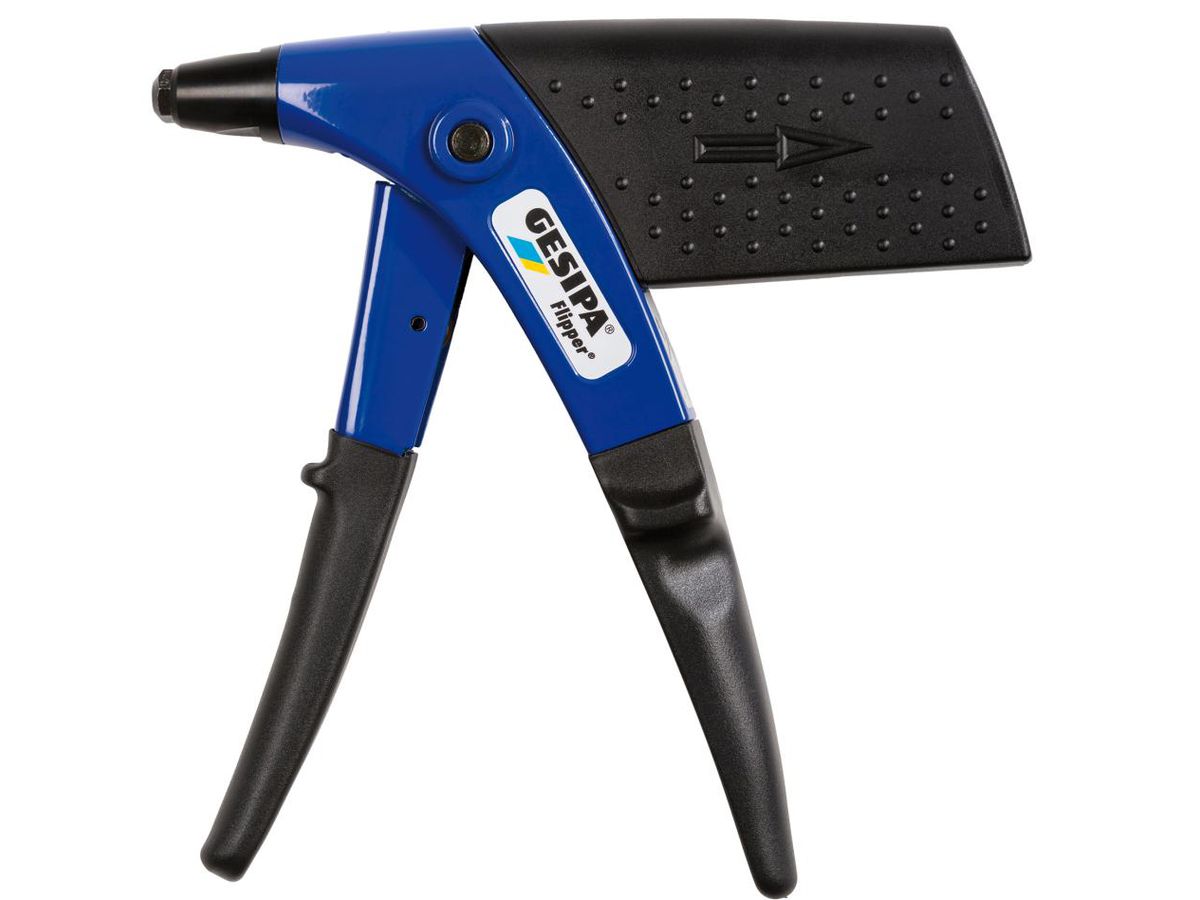

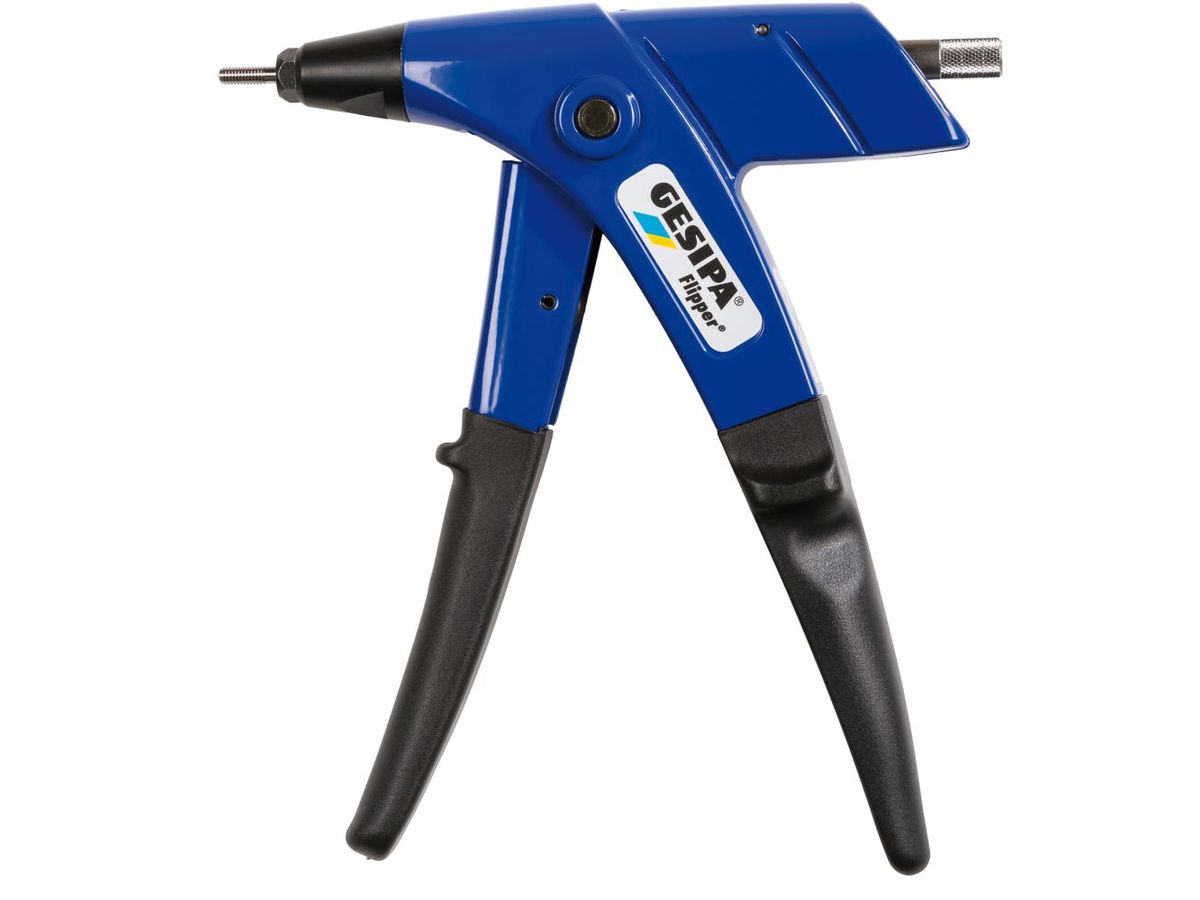

Combination setting tool Flipper® Plus Design: Made of die-cast aluminium with forged pliers jaws made of high-quality steel. For the setting of blind rivets and blind rivet nuts with just one tool. The required hand strength is reduced by 40% after repeated actuation. The hinge pin is mounted to prevent turning. With removable mandrel-collecting vessel, a spring reset for automatic mandrel ejection and an opening spring. Application: For blind rivets up to Ø 5 mm in aluminium and up to Ø 4 mm in steel and stainless steel. Setting blind rivet nuts from M4 to M6 aluminium as well as from M4 to M5 steel. Scope of delivery: Hand rivet tool Flipper® Plus, 3 mouthpieces for blind rivet processing 12/20, 12/24, 12/29 and 3 conversion sets for processing blind rivet nuts (mouthpiece and mandrel) 12/M4, 12/M5, 12/M6, assembly spanner, hexagonal pin spanner, chuck jaw insertion aid. Note: One setting tool with 2 functions, a blind rivet setting tool can be converted into a blind rivet nut setting tool in just a few steps. Can be converted in less than 1 minute. Mouthpiece attachment: Rivet Ø Rivet material Mouthpiece .4 Aluminium 10/18 .2 CAP-aluminium, CAP-Cu 10/18 and 3.2 Alu, Cu, steel, stainless steel, 10/24 Stinox, Alu/Alu, PG-Alu, PG-steel Aluminium, Cu 10/24 steel, CAP-Alu, CAP-Cu, 10/27 Alu/Alu, PG-Alu Stainless steel, Stinox, PG-steel 10/29 .8 CAP-aluminium, CAP-Cu 10/29 .8 and 5 Aluminium, PG-aluminium 10/32
