Description

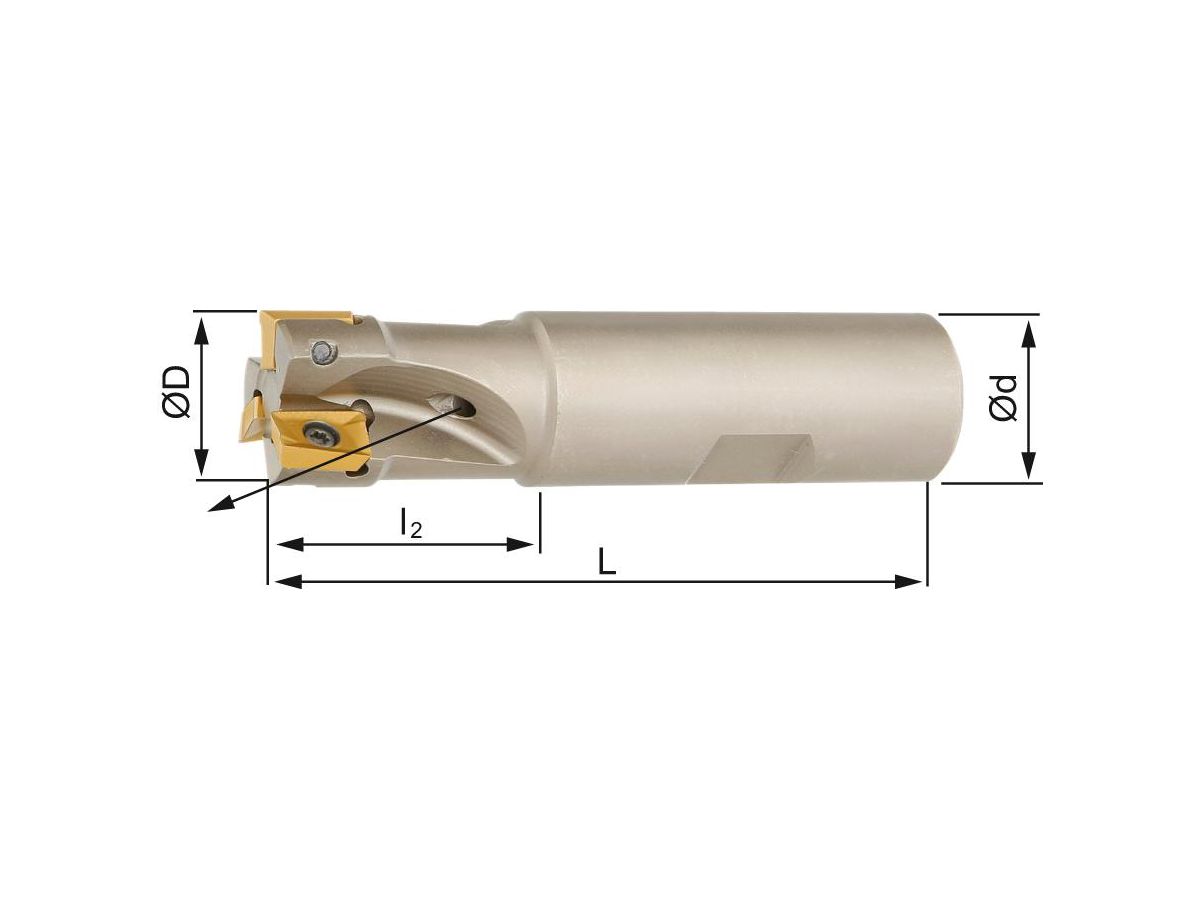

Milling cutter, 90°, cylindrical Design: Milling cutter cylindrical 90°, tool carrier nickel-plated. Supplied without indexable inserts, without screwdriver. Application: For angle and slot cutting, inward copying, circular and peripheral milling as well as drill circular milling, for universal applications.

Specifications

Durchmesser	32,00 mm
Ø D	32 mm
Abmessungen Ø d h6	25 mm
Abmessungen L	102 mm
Abmessungen L1	- mm
IK	ja
Schnitttiefe ap/max.	9 mm
Wendeschneidplatte	APKT/APMT 10...
Anzahl Schneiden	5
Ø d1 = k10	32,00 mm
DIN	DIN 1835-B
