Description

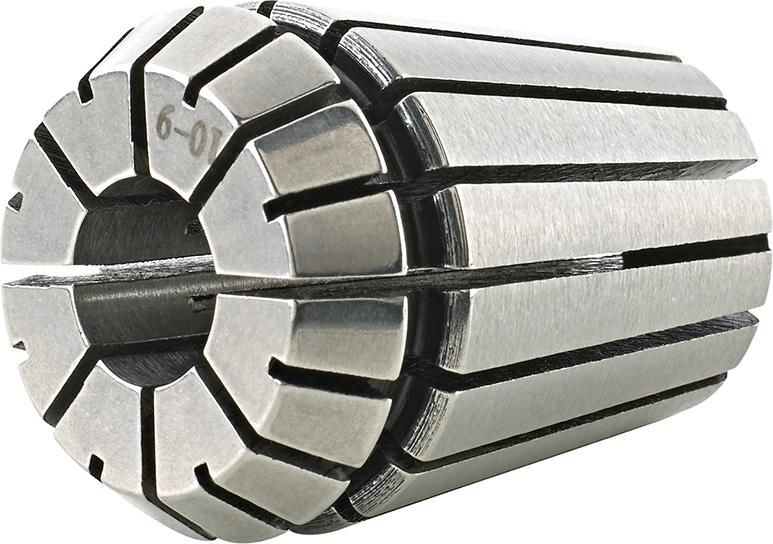

Collet ER 32 - System ER Design: Double slotted. System ER, concentricity 0.015 mm. Flexing motion of the milling cutters is excluded, therefore high precision during machining and long service life. Application: Multi-range collet from Ø 2 mm for clamping up to max. 1 mm below nominal diameter (ER11 0.5 mm).

Specifications

~L1	40 mm
d12	33 mm
DIN	DIN 6499 B_2359
ER32 / 470E Ø	18,0 mm
Außen-Ø	33 mm
Länge	40 mm
